MMO Mesh Anode

Mesh Anode is composed of a precious metal oxide catalyst sintered to an expanded Titanium mesh substrate(ASTM B265 Gr1 or 2). The Ribbon Mesh anode is used as a key component in the Cathodic Protection of reinforced concrete structures.

Environment & life

Current Output of mesh in reinforced concrete :
1.05mA/ft(3.5mA/m) when operating at an anode current density of 110mA/m²
Design Life :
Over 100 years design life when operating at a current density of 110mA/m²

Dimensions
  Units ¼" Mesh ½" Mesh
width mm 12.7 19
Thickness mm 1.3 1.3
Surface Area m²/m 0.032 0.048
Standard Coil Length m 76 76
Standard Coil Weight kg 1.78 2.7

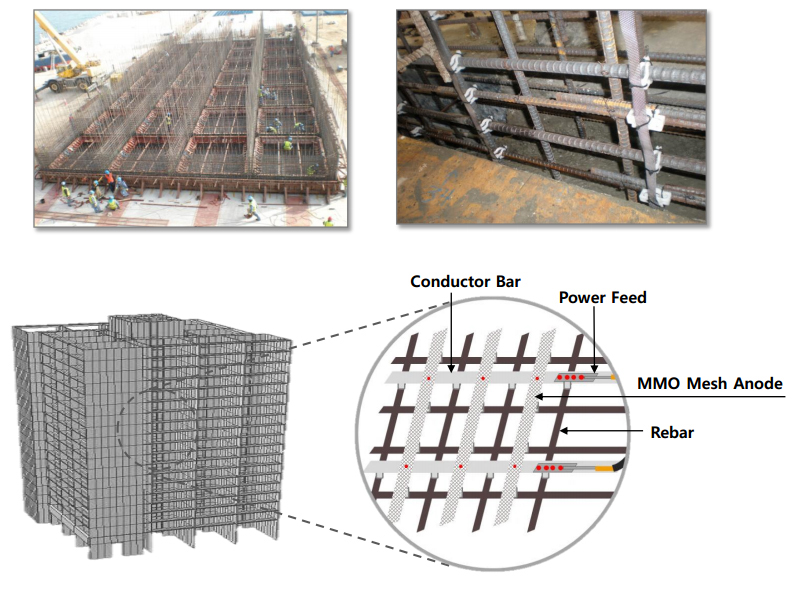

Construction & Schematic diagram
